Cutting Smart: Pottinger’s Novacat F 3100 Opticurve raises the bar
From a single look at the Pottinger Novacat F 3100 Opticurve, it’s immediately apparent that this isn’t just another front-mounted mower. It’s a machine born out of thoughtful engineering and shaped by the real-world demands of farmers and contractors who know what clean forage means for stock performance and who don’t have time for inefficiencies in the paddock.
Since its launch in 2024, this model has already earned recognition with an AgrarTec Gold medal. Now, Pottinger has gone one step further by introducing the optional Profiline comfort control system, a decisive upgrade that takes this high-performance mower into new territory.

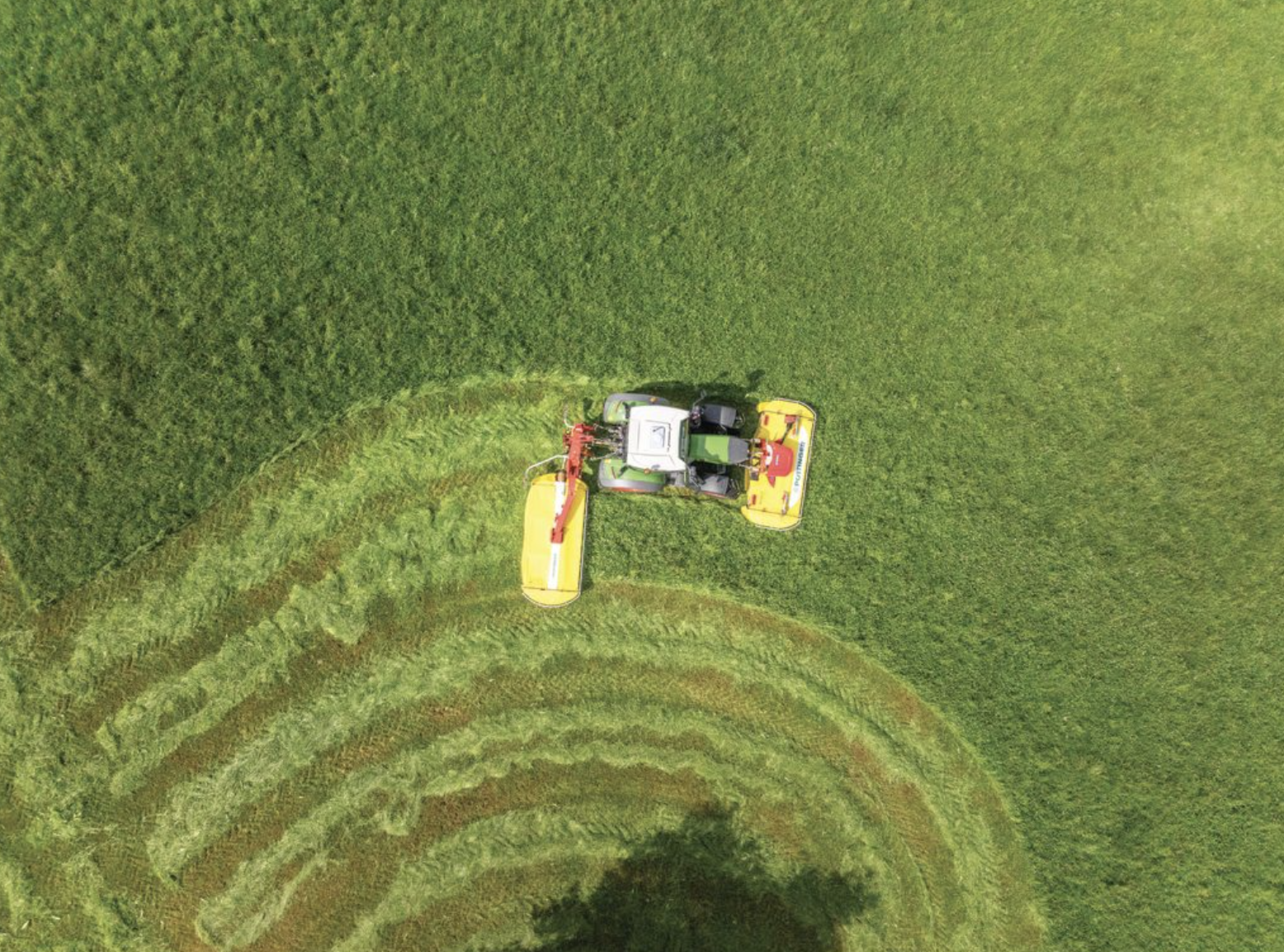

At the core of the Novacat F 3100 Opticurve’s appeal is its arc-shaped side shift system. Unlike traditional straight-line shift systems that often leave several centimetres of forage untouched in tight corners or along slopes, the Opticurve’s hydraulic arc movement ensures the full working width is utilised. This has a direct impact on the efficiency of the entire mowing pass, allowing follow-up harvesting machines to operate in clean forage-free tracks. A hydraulic cylinder shifts the mower up to 20 centimetres left or right, adjusting the cutter bar angle by up to 8 degrees. This is critical when negotiating undulating terrain or tight turns, as the overlap with the rear mower remains consistent. No crop is left standing, and the tractor’s tyres aren’t running over uncut grass.
The 3.04-metre working width and seven-disc setup make the F 3100 Opticurve a true all-rounder. Its compact three-point linkage headstock brings the centre of gravity closer to the tractor, ensuring a well-balanced setup even when working with lighter or smaller tractors. With a weight of just 690 kilograms, the mower remains agile without compromising durability. This low-slung design doesn’t just benefit manoeuvrability it also improves visibility from the cab, helping the operator see exactly what’s going on in front of them.
Pottinger has clearly focused on precision mowing from the ground up, and this is where their Austrian-made cutter bar makes a notable difference. At just 4 cm tall and 28 cm wide, the bar offers excellent crop flow and ground tracking. The sleek welded construction provides a durable yet streamlined foundation, ensuring soil is cleanly separated from the crop. Cleaning paddles prevent dirt build-up, and the rounded disc surfaces enhance crop transfer along the bar. It’s the kind of subtle design work that pays off in the form of less forage contamination and better animal health.
Durability hasn’t been sacrificed for weight or agility. The cutter bar features clamped mower blades that rotate very close to the counter knife, ensuring a neat cut even in damp or muddy conditions. The blade system is easy to service, with a quick-change mechanism and robust spring clips. Each blade pin is bolted to the disc and can be replaced independently, reducing downtime and running costs. As farmer Pierre-Yves Michel from France puts it, “The ground tracking of our Pottinger rear and front mowers on our very hilly terrain is outstanding. We also appreciate the robustness and cost effectiveness of our mowers.”
Adding to this robustness is Pottinger’s Tri Drive concept, which uses straight-line spur gear drive with three teeth always in contact. This reduces the load on individual gears, particularly useful in stony or uneven fields. The polished gear surfaces, submerged in oil, ensure smooth operation and reduce noise - an added bonus for those long days in the cab.
With the Profiline comfort control system now available, the Novacat F 3100 Opticurve becomes even more intelligent. This optional upgrade allows the mower to steer left and right automatically, adjusting its position based on the tractor’s steering angle and the slope’s gradient. It uses an acceleration sensor mounted directly on the mower, with the option of integrating the tractor’s own steering angle signal for increased accuracy. The system is controlled via the tractor’s Isobus terminal or the Select Control terminal and receives hydraulic oil via a load-sensing or power beyond system. For the operator, this means less manual intervention and more time focusing on what matters—safe and productive driving.
Ground tracking of course, remains one of the defining features of this mower. Gimbals in the guide arms allow the cutter bar to move freely and smoothly in all directions, enabling precise following of the ground’s contours. The arc of movement, up to +/-8 degrees, allows the mower to float across bumps and hollows with minimal disturbance to the soil or crop. Combined with the suspension system, which can carry the mower’s weight using strong springs between the headstock and the tractor mount this setup achieves a ground pressure of just 150 kilograms, ideal for a clean cut and minimal turf damage.
Transport safety is another consideration, and Pottinger has covered that well. When lifted, centring springs stabilise the cutter bar to prevent sway. Side guards fold up for road travel, with hydraulic folding available as an option and lighting kits can be added to ensure compliance and safety.
For contractors and farmers chasing high-quality forage and maximum efficiency, the Novacat F 3100 Opticurve offers plenty of value. Its smart mechanics make it possible to maintain clean overlaps even under challenging terrain or while cornering, while the cutter bar design and ground tracking ensure forage stays free of soil and debris. And as Christian Bäck, a Merino sheep farmer from Austria explained, “In my view, a machine’s ground tracking is the be-all and end-all especially with a front mower.”
It’s not just the hardware that’s been fine-tuned; it’s also a machine built for ease of ownership. The guards fold away easily for servicing, and blade changes can be carried out quickly with the provided tool. The combination of clever design, durable construction and automation support makes the Novacat F 3100 Opticurve a standout in its class.
By giving farmers and contractors a smarter way to mow, Pottinger has positioned the Novacat F 3100 Opticurve as a front mower that does more than just cut - it leads the field.
