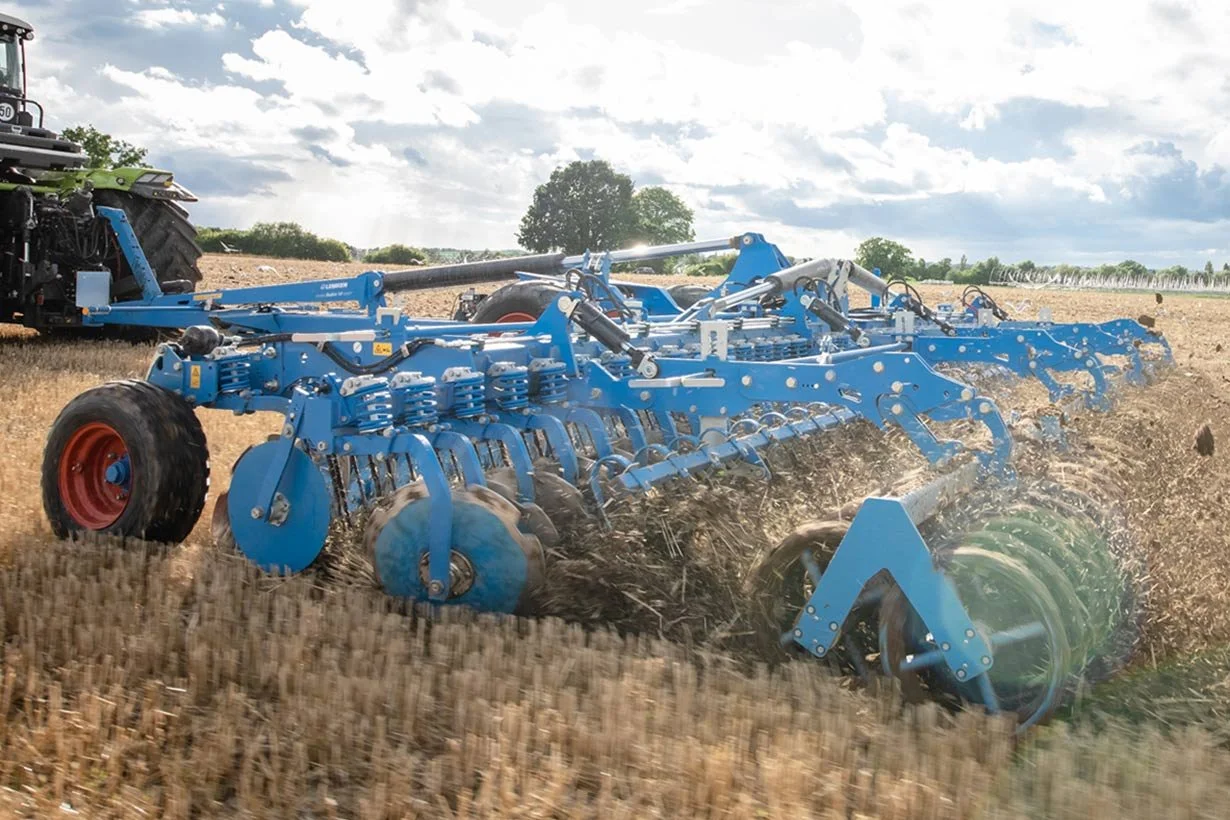

Lemken sets new benchmark in soil cultivation with the Rubin 10/1000 compact disc harrow

The machine has now been released, with the first model displayed at Southern Field Days 2026, demonstrating Lemken New Zealand’s dedication to providing reliable, high-performance equipment for New Zealand farmers.

Built for professional farmers and contractors working in challenging conditions, the Rubin 10/1000 boasts an unprecedented 10-metre working width, making it one of the widest disc harrows with under 3-Meter road transport on the market. The machine’s robust design and intelligent features are tailored to deliver uniform, intensive soil incorporation across broad field widths even at shallow depths.

“Modern farming demands equipment that delivers strong performance without sacrificing ease of use or adaptability in the field,” said Ben Harris, Regional Service Manager, Lemken New Zealand. “The Rubin 10/1000 meets that need through its scale, drives higher productivity and supports long-term soil health.”

Key Features & Advantages:

Record-Setting Disc Diameter: With a 645 mm disc diameter the Rubin 10/1000 offers exceptional penetration and residue mixing, suited to high-speed soil cultivation.

Large Working Width: A full 10 m working width enables efficient coverage of large acreages, reducing passes, fuel usage and operating time.

Automatic Folding & Transport Ease: Hydraulic automatic folding allows the unit to compact to <3 × 4 m for safe transport on roads and narrow access points, streamlining setup and movement between fields.

Depth Adjustment Without Tools: Operators can fine-tune tillage depths quickly and easily to match soil conditions, supporting consistent results across variable terrains.

Road-Ready Performance: The implement carries EU-wide approval for transport speeds up to 40 km/h, enhancing operational efficiency.

Intelligent Contour Handling: Optional iQ Blue contour adjustment actively adapts to slopes and uneven ground for even, high-quality tillage results.

The Rubin 10/1000 KUA is designed for tractors rated between 320–600 hp and its symmetrical disc arrangement with 14 cm line spacing ensures consistent soil flow and minimal blockage, even with high volumes of residue.

Beyond its agricultural capabilities, the machine emphasises operator comfort and safety. Strong attachment options—including drawbar eye and ball coupling variants—provide secure and stable connectivity during both field work and transport. The implement’s ability to lift and rotate on its roller reduces ground pressure at headlands, minimising soil compaction and preserving structure.

The Rubin 10/1000 is now available through Lemken New Zealand’s global dealer network. For more details on the full range of configurations and technical specifications, contact your local representative or visit lemken.com
