VarioDrive: Transmission technology redefining modern tractor performance

In modern agriculture, efficiency, traction, operator comfort and fuel economy are more important than ever. Farmers and contractors demand machines capable of performing a wide range of tasks while minimising operating costs and maximising productivity. One of the technologies helping achieve those goals is Fendt’s VarioDrive transmission system.

Designed to deliver seamless power transfer, intelligent traction management and operator comfort, VarioDrive represents a significant development in tractor drivetrain technology.

VarioDrive is Fendt’s continuously variable transmission system, providing stepless and dynamic operation across the tractor’s entire speed range. Unlike conventional transmissions that rely on fixed gear ranges or manual shifting, VarioDrive enables smooth acceleration from creeping speeds of approximately 0.02km/h through to transport speeds of up to 60km/h, without the need for range changes.

A key feature of the system is that the front and rear axles are driven separately. Through intelligent electronic control, power is automatically distributed between the axles according to operating conditions, helping maximise efficiency and traction.

Originally introduced in Fendt’s larger 1000 Vario models, VarioDrive has since expanded through the range, including the Fendt 800 Vario Gen5 and down to the Fendt 500 Vario Gen4. This now brings the technology into tractors spanning approximately 130 to 320hp.

One of the more innovative elements of VarioDrive is its ability to manage torque automatically through Fendt Torque Distribution. The system continuously monitors operating conditions and directs torque to the axle with the most grip. Rather than relying on operator intervention, the tractor automatically optimises traction in real time.

When operating in muddy paddocks, uneven terrain or changing soil conditions, power can therefore be transferred to where it can be used most effectively. The result is improved traction, reduced wheel slip and greater overall efficiency, allowing the operator to concentrate on the task rather than continually managing drivetrain settings.

Automatic management of power distribution can also contribute to reduced tyre wear, with torque applied more efficiently and consistently. Over the working life of a tractor, that has the potential to contribute to lower operating costs.

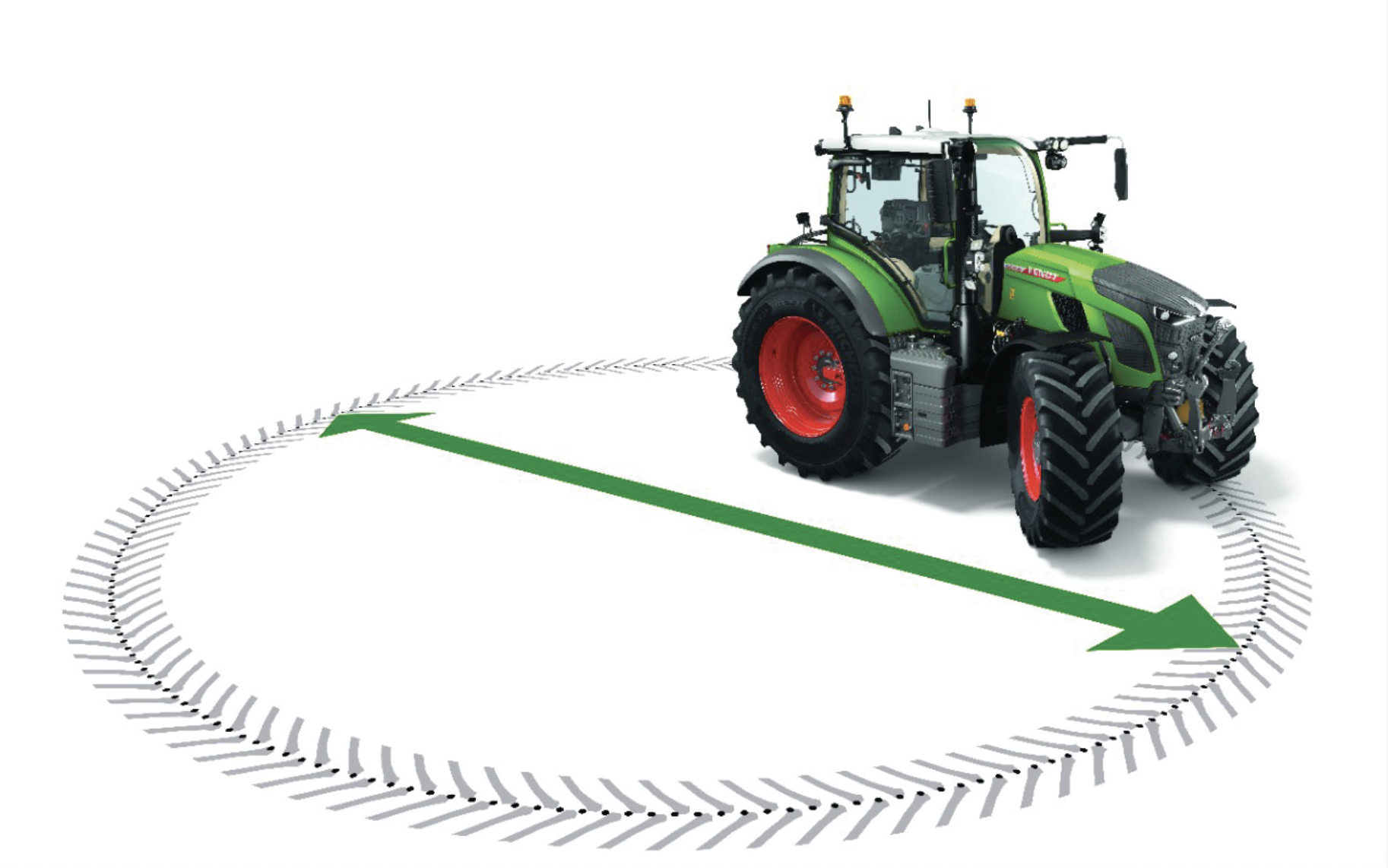

Manoeuvrability is another important consideration for modern tractors, particularly when working on confined headlands, around buildings or in livestock operations. VarioDrive addresses this through its pull-in turn effect.

During a turn, the front axle effectively pulls the tractor into the corner, reducing the turning radius and creating a more agile driving experience. The technology can reduce the turning circle by up to 10%, making manoeuvring easier and more precise.

The benefits extend beyond convenience. A tighter turning circle can reduce crop damage on headlands, improve field efficiency and make loader operations more productive. Whether cultivating, baling, mowing or transporting materials, less time spent repositioning the tractor can translate into greater productivity across the working day.

Simplifying tractor operation has also been an important part of the VarioDrive concept. Traditional transmissions can require operators to switch between gear ranges or manually engage and disengage four-wheel drive, creating interruptions in workflow and adding another task for the operator to manage.

With VarioDrive there is no need for manual range shifting. The system continuously adjusts transmission ratios to provide the required speed and torque, while intelligently controlled four-wheel drive removes the need for the operator to continually activate and deactivate the drivetrain.

The result is a simpler driving experience, allowing the operator to concentrate more closely on the implement and job being carried out. Over long working days, reducing the number of functions that need to be manually managed can also help reduce operator fatigue.

Fuel consumption is a particularly relevant consideration at present, with diesel remaining one of the largest operating expenses for farmers and contractors. VarioDrive is designed to address this through close coordination between engine and transmission performance.

When combined with the Fendt iD low-speed engine concept, VarioDrive allows the engine and transmission to work together efficiently. High torque is available at lower engine speeds, helping reduce fuel consumption while maintaining performance.

Because the tractor operates at an appropriate transmission ratio for the conditions, power losses associated with conventional gear changes are minimised. The system continuously selects an efficient operating point, reducing unnecessary fuel use during both field and transport applications.

For contractors and larger farming operations where tractors can accumulate hundreds or thousands of hours annually, relatively modest improvements in fuel efficiency can translate into meaningful savings over the life of the machine.

VarioDrive is also designed to contribute to lower ownership costs through extended service intervals and simplified maintenance requirements, with the transmission oil change interval extending to 2,000 operating hours.

Eliminating range shifting and optimising power transfer can also reduce stress on drivetrain components. Combined with intelligent torque management, these features are designed to contribute to durability and long-term reliability.

The flexibility of VarioDrive allows the same tractor to work across a wide variety of agricultural applications. During heavy draft work such as cultivation or subsoiling, intelligent torque distribution helps maximise available traction. On the road, the stepless transmission provides smooth acceleration while allowing the tractor to operate efficiently at transport speeds.

For loader work and livestock operations, the pull-in turn effect improves manoeuvrability and responsiveness, while in precision farming applications the ability to maintain exact operating speeds without range changes can contribute to greater accuracy.

That versatility helps explain why VarioDrive has moved beyond Fendt’s flagship tractors and into the medium-horsepower segment, where farmers and contractors increasingly expect the same levels of technology, efficiency and operator comfort previously associated with larger machines.

VarioDrive is therefore more than simply a continuously variable transmission. It is an integrated drivetrain concept combining intelligent traction management, stepless speed control, improved manoeuvrability, fuel efficiency and reduced operator input.

By automatically distributing torque between the axles, removing the need for manual range changes and allowing the engine and transmission to operate together efficiently, VarioDrive is designed to make better use of the tractor’s available power while simplifying the job for the person behind the wheel.
